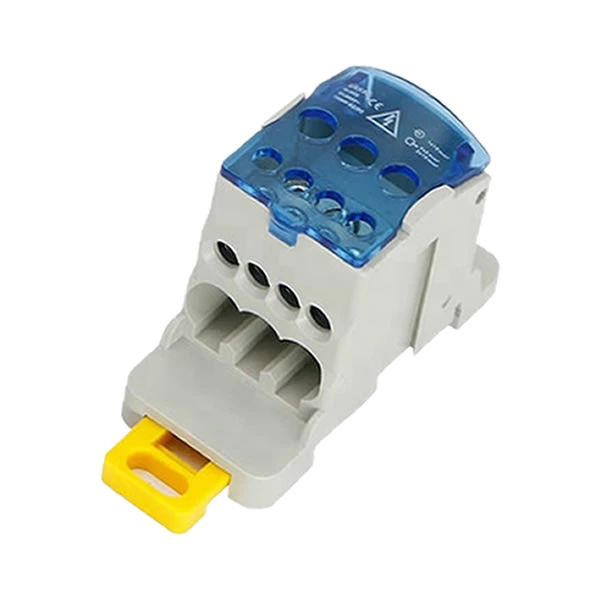

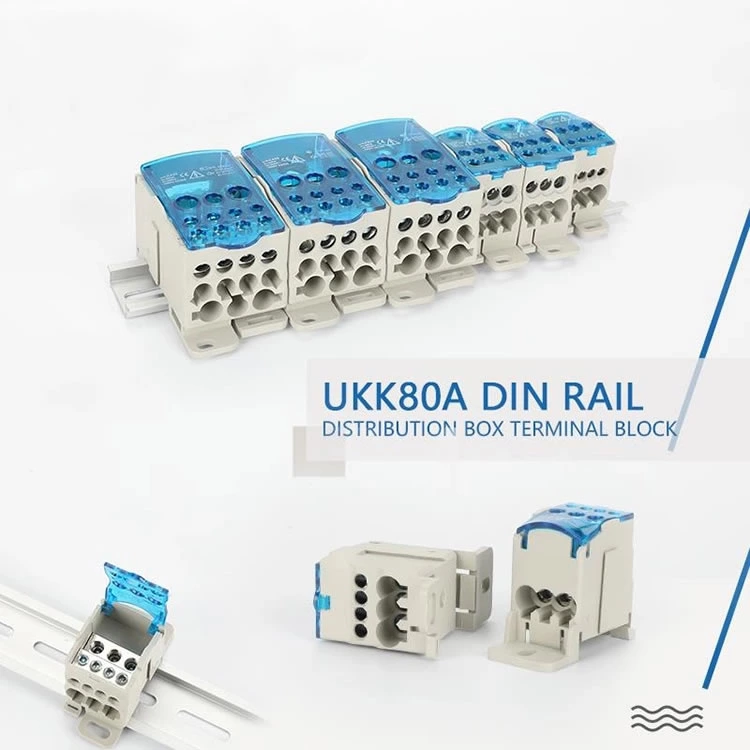

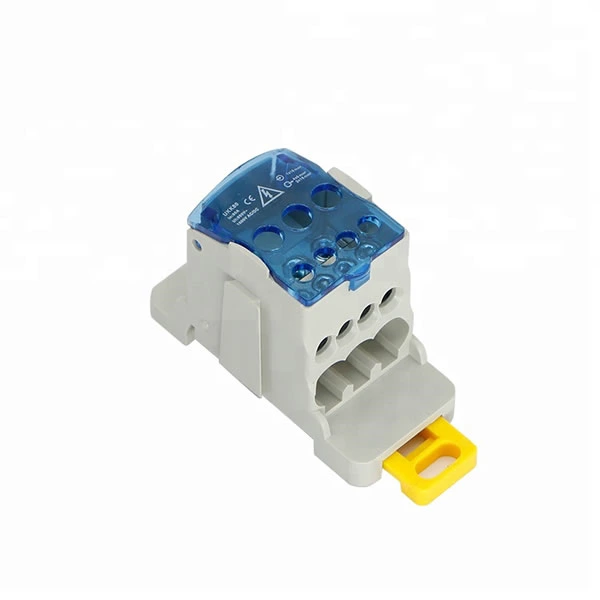

UKK 80A Power Distribution Terminal Block Box on Din Rail terminal block
- Type
- Screw
- Rated Current
- 80A
- Rated Voltage
- 600V
- Conductor Size
- 5 - 10 AWG
- Color
- Blue and gray
UKK 80A Power Distribution Terminal Block Box on Din Rail terminal block
Features
These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.
Compact design
- Simple and Safety Operating

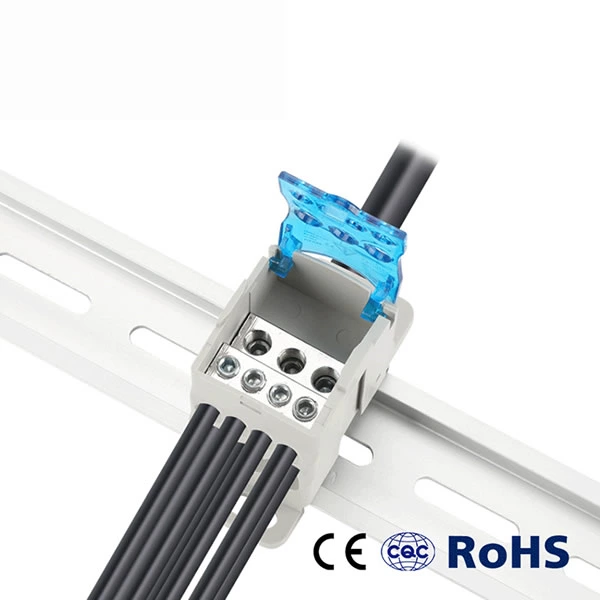

- Install on 35mm wide DIN rail or chassis mounting with screws.
- With Dust-proof and insulation cover

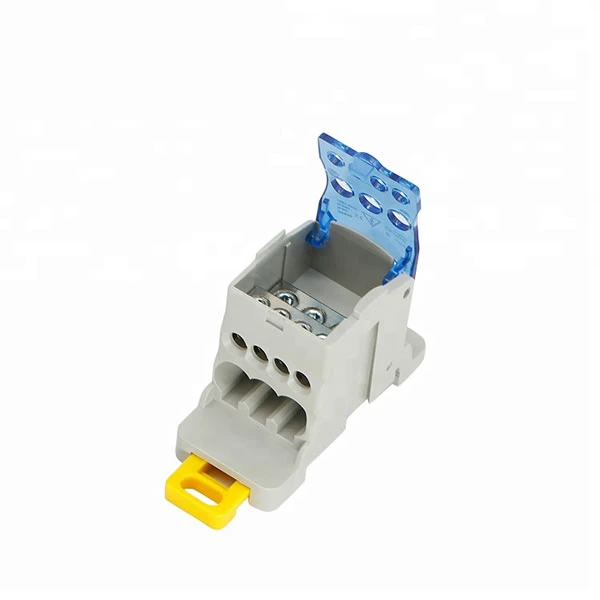

- hinged design with safety removable cover.
Specifications

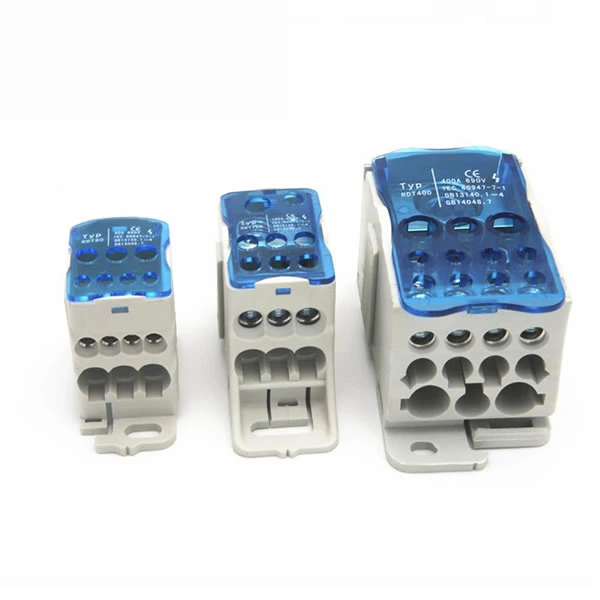

| Item name | spec. | Rated Current (A) | Rated Voltage (V) | Input Cable size (mm2)*pcs | Output Cable size (mm2)*pcs | Install Way din rail | Size (mm) |

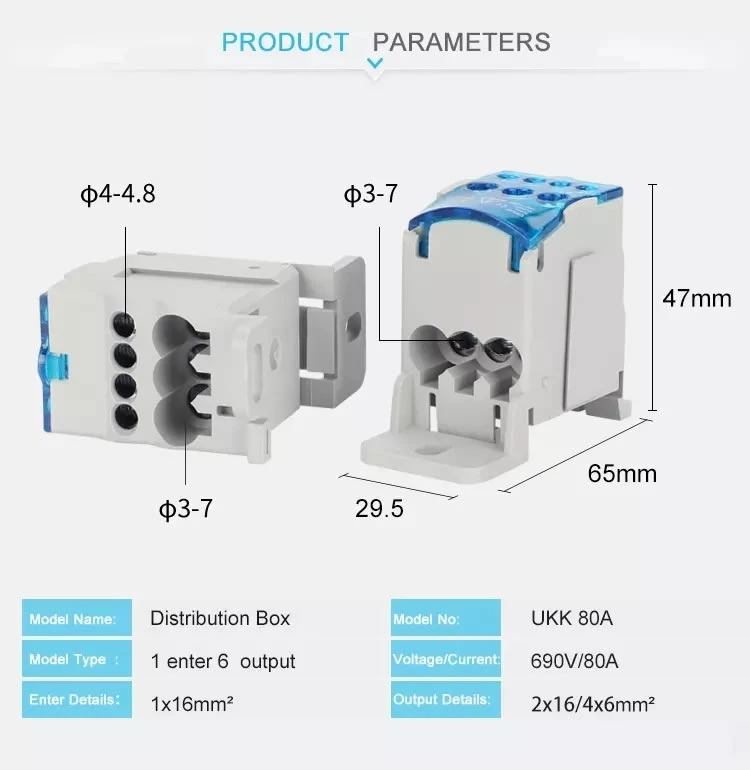

| Terminal Box | UKK-80A | 80 | 500 | 16*2 | (2.5-16)*1 (1.5-10)*4 | 1.0*7.5*35 | 65*31*47 |
| UKK-125A | 125 | 500 | 35*1 16*1 | (2.5-16)*6 | 1.0*7.5*35 | 75*31*47 | |
| UKK-160A | 160 | 500 | 70*1 16*1 | (2.5-16)*6 | 1.0*7.5*35 | 75*31*48 | |
| UKK-250A | 250 | 500 | 120*1 | (6-35)*2 (2.5-25)*4 (2.5-16)*5 | 1.0*7.5*35 | 96*50*51 | |
| UKK-400A | 400 | 500 | 175*1 | (6-35)*2 (2.5-25)*4 (2.5-16)*5 | 1.0*7.5*35 | 95*50*51 | |
| UKK-500A | 500 | 500 | 8*25 | (6-35)*2 (2.5-25)*4 (2.5-16)*5 | 1.0*7.5*35 | 96*50*51 |
